State Snapshot Transfer method with the Clone plugin

Overview

Clone State Snapshot Transfer (SST) is available in Percona XtraDB Cluster (PXC) 8.4.4-4 and later.

Clone SST uses the MySQL Clone plugin to copy data from a Donor node to a Joiner node.

Clone SST transfers data at the file level.

Clone SST uses fewer resources than xtrabackup or rsync.

Limitations

See Clone plugin limitations .

Key features

Feature	Description
File-level transfer	The Clone plugin copies data files with less overhead
Consistency	The Donor and Joiner keep consistent data
Shorter sync time	Node synchronization takes less time
Native MySQL support	The method uses MySQL. External tools are not required

Prerequisites

Clone SST requires the following:

• Percona XtraDB Cluster 8.4.4-4 or later

• Enough disk space and network bandwidth for the data transfer

• A configured PXC cluster with at least one Donor node

• The NetCat package

• Port 4444 open for SST data transfer by default

Best practices

Recommendation	Description
Select a suitable Donor	Choose a Donor with low load and enough resources
Monitor resource use	Track CPU, memory, and disk use during SST
Test before production	Run Clone SST in a staging environment first

Process outline

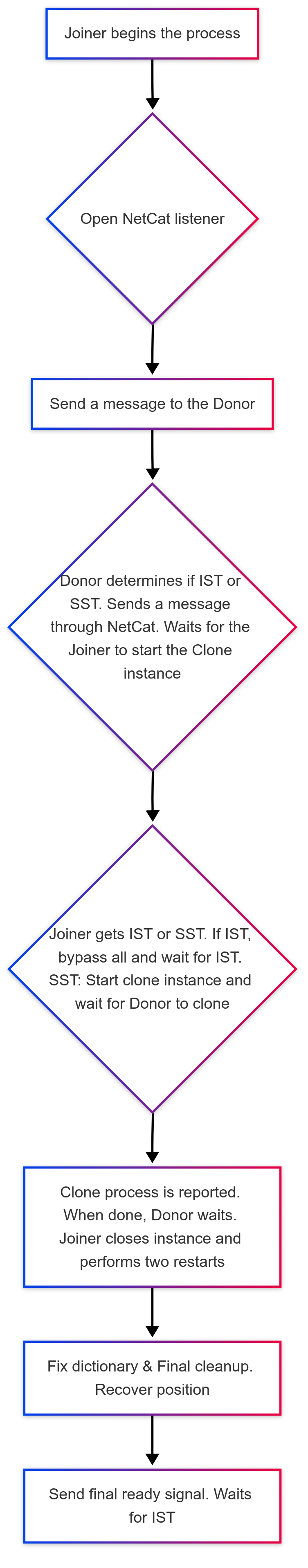

The following diagram shows the Clone SST process:

Enable the Clone SST method

Donor and Joiner

Set wsrep_sst_allowed_methods to include clone on the Donor and the Joiner.

From PXC 8.4.4-4, the default value of wsrep_sst_allowed_methods includes clone.

In most cases, you do not need to set this option manually.

[mysqld]
wsrep_sst_allowed_methods = xtrabackup-v2,clone

Joiner

On the Joiner, set wsrep_sst_method to clone in my.cnf.

clone is the only accepted value for Clone SST.

[mysqld]
wsrep_sst_method = clone

Read-only SST variables

wsrep_sst_allowed_methods and wsrep_sst_method are read-only at runtime.

Set these variables in my.cnf before you start the server.

A change while the server runs causes errors and can break node synchronization.

Enable SSL for Clone SST

Store SSL certificates outside the data directory.

The Clone process changes the data directory.

Set the SSL certificates in my.cnf:

[client]
ssl-ca = /<PATH>/ca.pem
ssl-cert = /<PATH>/client-cert.pem
ssl-key = /<PATH>/client-key.pem
[mysqld]
ssl-ca = /<PATH>/ca.pem
ssl-cert = /<PATH>/server-cert.pem
ssl-key = /<PATH>/server-key.pem

You can also set Clone-specific SSL options on the Joiner:

[mysqld]
clone_ssl_ca = /<PATH>/ca.pem
clone_ssl_cert = /<PATH>/client-cert.pem
clone_ssl_key = /<PATH>/client-key.pem

Do not set <PATH> to the data directory.

Clone SST temporary password

When wsrep_sst_method is clone, the Joiner creates a temporary password for the short-lived clone_sst account.

The Donor uses the same password to connect back to the Joiner.

If validate_password is enabled, the password must meet the policy on the Joiner and the Donor.

Configure password adjustments on the Joiner.

The password may use only characters that are safe for the SST credential handshake (user:password@host:port).

The following characters are not allowed:

• @

• :

• Quotes

• Spaces

Default password

The default password needs no extra configuration.

The default password includes the following:

• Length: 36 characters

• At least one uppercase letter

• At least one lowercase letter

• At least one digit

• At least one special character (.)

This default password meets most basic validate_password settings.

Adjust the password for stricter validate_password rules

For a stricter policy, add a suffix in my.cnf on the Joiner.

Examples of stricter rules include a longer minimum length or higher mixed-case, digit, or special-character counts.

[sst]
sst-password-suffix=AAA..//2344

The suffix is appended to the default generated password.

Both sst-password-suffix and sst_password_suffix are accepted.

Allowed characters in the suffix are the following:

• Letters (A-Z, a-z)

• Digits (0-9)

• Special characters: . _ / -

Other characters are not allowed and cause SST to fail early.

Disallowed characters include the following:

• +

• =

• Spaces

• Quotes

• @

• :

• Commas

Example policy:

validate_password.length = 40
validate_password.mixed_case_count = 7
validate_password.number_count = 3
validate_password.special_char_count = 2

Example suffix for that policy:

[sst]
sst-password-suffix=AAA..//2344

Match the suffix to your site policy.

The final password must pass validation on the Donor and the Joiner.

Configure sst-password-suffix on the Joiner only.

The Donor receives the final password from the Joiner during SST.

Variables

SST variables

Set the following variables for SST:

Variable	Description	Link
sst_idle_timeout	Maximum idle time in seconds before SST fails. Set this option in the [sst] section of my.cnf.
wsrep_sst_donor	Preferred Donor for SST. If unset, the cluster selects a Donor.	Learn more
wsrep_sst_method	SST method. Only one value is allowed.	Learn more
wsrep_sst_receive_address	IP address and port on the Joiner that receives SST data.	Learn more

Timeout and password options

Clone SST uses the following wait points between the Joiner and the Donor.

You can also set an optional password suffix for validate_password.

Option	Default	Description
joiner-timeout-wait-donor-message	60	Seconds the Joiner waits for the Donor SST or Incremental State Transfer (IST) message. The process stops when the timeout is reached.
joiner-timeout-clone-instance	90	Seconds the Joiner waits for the clone recipient to accept connections. The process stops when the timeout is reached.
donor-timeout-wait-joiner	200	Seconds the Donor waits for the Joiner clone instance. Increase this value on slower systems. The Donor log shows a countdown and a timeout message.
sst-password-suffix	empty	Optional suffix appended to the default Clone SST temporary password. Use this option so the final password meets stricter validate_password rules. Configure this option on the Joiner only. Both sst-password-suffix and sst_password_suffix are accepted.

Example configuration:

[sst]
joiner-timeout-wait-donor-message=60
donor-timeout-wait-joiner=200
joiner-timeout-clone-instance=90
sst-password-suffix=AAA..//2344

Debug the process

To write more debug output, set the following option in my.cnf:

[sst]
wsrep-debug=true

The default SST port is 4444.

Monitor the process

The Joiner log reports Clone progress as a percent of data transfer complete.

Use the following query:

SELECT FORMAT(((data/estimate)*100),2) 'completed%' FROM performance_schema.clone_progress WHERE stage LIKE 'FILE_COPY';

To check status and errors, use the following query:

SELECT STATE, ERROR_NO, ERROR_MESSAGE FROM performance_schema.clone_status;

Troubleshoot

Problem	Possible cause	Solution
Clone operation fails	Network interruptions	Confirm a stable network and enough bandwidth between nodes
Clone operation times out	Timeout values are too low	Increase the timeout values in the [sst] section of my.cnf
“No space left on device” error	Not enough disk space	Confirm that the Donor and Joiner each have free disk space of at least 1.5 times the database size
Permission denied errors	Incorrect MySQL user privileges	Grant CLONE_ADMIN to the MySQL user on both nodes
Connection refused on port 4444	Firewall blocks traffic	Allow traffic on port 4444 between cluster nodes
Certificate validation failure	Incorrect SSL configuration	Confirm that SSL certificates are valid and stored outside the data directory
Clone plugin not found	Plugin is not installed	Install the plugin with INSTALL PLUGIN clone SONAME 'mysql_clone.so'
Data inconsistency after clone	Interrupted clone process	Check the MySQL error logs and restart the clone process
Password validation failure during Clone SST	validate_password policy is stricter than the default temporary password	Set sst-password-suffix on the Joiner so the final password meets the policy on both nodes. Use only allowed suffix characters.
